Sêl wedi'i bondio â metrig gwrywaidd BSP 60
Mae catalog ffitiadau BSP yn popluare yn y DU, Iwerddon, Canada, UDA ac ati.
Esbonnir holl ffitiadau côn BSP 60 gan BS5200 sy'n hafal i safon ISO 8434-6.
Maint siart maint edau BSPP yw G 1/8, G1 / 4, G1 / 2, G3 / 4, G3 / 8, G5 / 8, G1, G1-1 / 4, G1-1 / 2, G2, G2- 1/2, G3 ac ati.
Mae BSP yn bibell safonol brau gyda ffurf edau 55 gradd.
Mae edau BSPP yn unol â safonau ISO 228 ac AS 1722.2.
Canllaw edau BSPP i lawer o fathau o selio fel côn BSPP 60 ° i gysylltydd tiwb sedd, porthladd BSPP gyda sêl wedi'i bondio, porthladd BSPP gyda sêl ED, BSPP oring + math cylch G, math sael addasadwy o-ring BSPP, wyneb torri BSPP sêl Math B.
Addaswyr ffitio pibellau BSPP i sawl pen fel gwryw BSPT, gwryw ORFS, gre Metric ISO 6149-3, côn gwryw JIC 74, côn metrig 60 Komatsu, gwryw NPT, ffitiadau SAE ORB ISO 11926-3, tiwb weldio casgen, JIC benywaidd 37cone, ORFS benywaidd ac ati.

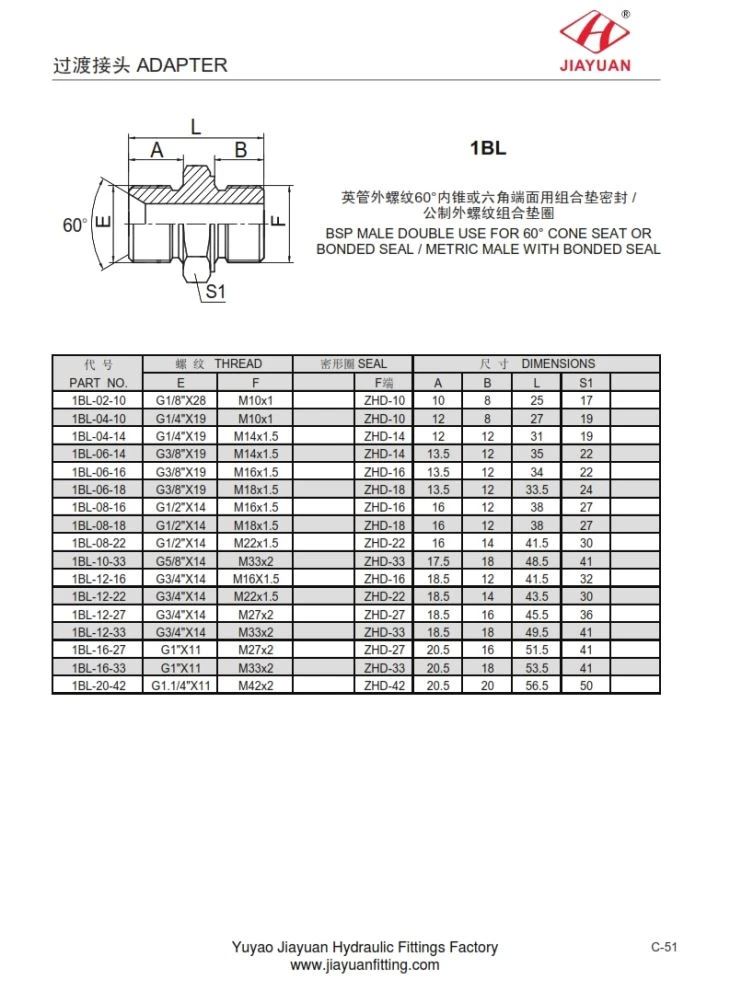

1BL DEFNYDD DWBL DUW BSP AR GYFER SEAT CONE 60 ° NEU SAL BONDED / DUW METRIC GYDA siart maint dimensiynau SEAL BONDED fel a ganlyn:
PA RT N O. | T HR EA D. | AAS L. | DIM E N S I O NS | ||||||
E. | F. | F. | A. | B. | L. | S 1 | |||
1 B L - 02 - 10 | G 1/8 " X 28 | M10 x 1 | Z HD - 10 | 10 | 8 | 25 | 17 | ||
1 B L - 04 - 10 | G 1/4 " X 19 | M10 x 1 | Z HD - 10 | 12 | 8 | 27 | 19 | ||
1 B L - 04 - 14 | G 1/4 " X 19 | M14 x 1.5 | Z HD - 14 | 12 | 12 | 31 | 19 | ||
1 B L - 06 - 14 | G 3/8 " X 19 | M14 x 1.5 | Z HD - 14 | 13.5 | 12 | 35 | 22 | ||
1 B L - 06 - 16 | G 3/8 " X 19 | M16 x 1.5 | Z HD - 16 | 13.5 | 12 | 34 | 22 | ||
1 B L - 06 - 18 | G 3/8 " X 19 | M18 x 1.5 | Z HD - 18 | 13.5 | 12 | 33.5 | 24 | ||
1 B L - 08 - 16 | G 1/2 " X 14 | M16 x 1.5 | Z HD - 16 | 16 | 12 | 38 | 27 | ||
1 B L - 08 - 18 | G 1/2 " X 14 | M18 x 1.5 | Z HD - 18 | 16 | 12 | 38 | 27 | ||
1 B L - 08 - 22 | G 1/2 " X 14 | M22 x 1.5 | Z HD - 22 | 16 | 14 | 41.5 | 30 | ||
1 B L - 10 - 33 | G 5/8 " X 14 | M33 x 2 | Z HD - 33 | 17.5 | 18 | 48.5 | 41 | ||
1 B L - 12 - 16 | G 3/4 " X 14 | M16 X 1.5 | Z HD - 16 | 18.5 | 12 | 41.5 | 32 | ||
1 B L - 12 - 22 | G 3/4 " X 14 | M22 x 1.5 | Z HD - 22 | 18.5 | 14 | 43.5 | 30 | ||
1 B L - 12 - 27 | G 3/4 " X 14 | M27 x 2 | Z HD - 27 | 18.5 | 16 | 45.5 | 36 | ||
1 B L - 12 - 33 | G 3/4 " X 14 | M33 x 2 | Z HD - 33 | 18.5 | 18 | 49.5 | 41 | ||
1 B L - 16 - 27 | G 1 " X 11 | M27 x 2 | Z HD - 27 | 20.5 | 16 | 51.5 | 41 | ||
1 B L - 16 - 33 | G 1 " X 11 | M33 x 2 | Z HD - 33 | 20.5 | 18 | 53.5 | 41 | ||
1 B L - 20 - 42 | G 1.1 / 4 " X 11 | M42 x 2 | Z HD - 42 | 20.5 | 20 | 56.5 | 50 | ||
Tagiau poblogaidd: sêl wedi'i bondio metrig gwrywaidd 60 bsp, Tsieina, gweithgynhyrchwyr, cyflenwyr, arfer, pres, swagelok, Parker, Stauff, Brennan, dur gwrthstaen
