Mae dimensiynau a chatalog ffitiadau pibellau NPT yr un peth gan wahanol gyflenwyr.
Deunydd Mathau o ffitiadau pibellau fel dur gwrthstaen, pres a phlastig.
Cymhwyso ffitiadau pibell edau BSPP y DU ac UDA mewn ffitiadau pibellau offeryniaeth a ffitiadau pibellau diwydiannol.
Addaswyr ffitiadau pibell NPT i weldio soced, gwryw NPT, SAE ORB, gwryw BSPT, gwryw ORFS, cysylltydd tiwb DIN 2353, o-ring metrig ac ati.
Siâp addasydd pibell BSPP fel syth, Penelin, Tee, Cross, Reducer.

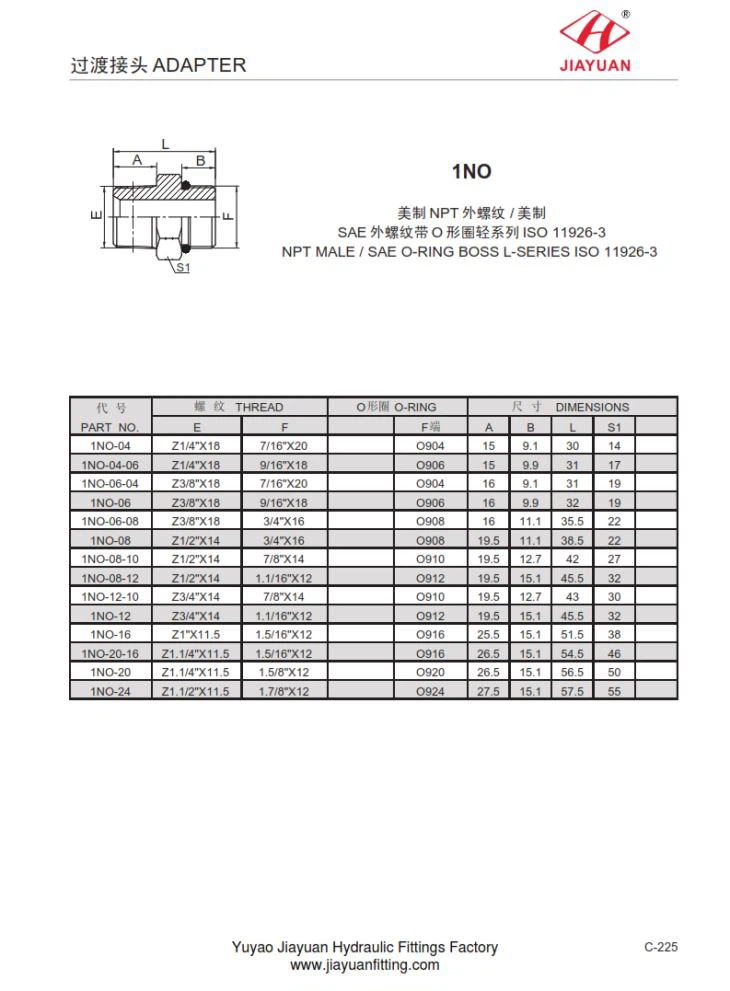

1NO NPT MALE / SAE O-RING BOSS L-SERIES ISO 11926-3 siart maint cysylltydd pibell fel a ganlyn:
PA RT N O. | T HR EA D. | O- RING | DIM E N S I O NS | ||||
E. | F. | F. | A. | B. | L. | S 1 | |
1N O- 04 | Z 1/4 " X 18 | 7/16 " X 20 | O 904 | 15 | 9.1 | 30 | 14 |
1N O- 04 - 06 | Z 1/4 " X 18 | 9/16 " X 18 | O 906 | 15 | 9.9 | 31 | 17 |
1N O- 06 - 04 | Z 3/8 " X 18 | 7/16 " X 20 | O 904 | 16 | 9.1 | 31 | 19 |
1N O- 06 | Z 3/8 " X 18 | 9/16 " X 18 | O 906 | 16 | 9.9 | 32 | 19 |
1N O- 06 - 08 | Z 3/8 " X 18 | 3/4 " X 16 | O 908 | 16 | 11.1 | 35.5 | 22 |
1N O- 08 | Z 1/2 " X 14 | 3/4 " X 16 | O 908 | 19.5 | 11.1 | 38.5 | 22 |
1N O- 08 - 10 | Z 1/2 " X 14 | 7/8 " X 14 | O 910 | 19.5 | 12.7 | 42 | 27 |
1N O- 08 - 12 | Z 1/2 " X 14 | 1.1 / 16 " X 12 | O 912 | 19.5 | 15.1 | 45.5 | 32 |
1N O- 12 - 10 | Z 3/4 " X 14 | 7/8 " X 14 | O 910 | 19.5 | 12.7 | 43 | 30 |
1N O- 12 | Z 3/4 " X 14 | 1.1 / 16 " X 12 | O 912 | 19.5 | 15.1 | 45.5 | 32 |
1N O- 16 | Z 1 " X 11.5 | 1.5/16 " X 12 | O 916 | 25.5 | 15.1 | 51.5 | 38 |
1N O- 20 - 16 | Z 1.1 / 4 " X 11.5 | 1.5/16 " X 12 | O 916 | 26.5 | 15.1 | 54.5 | 46 |
1N O- 20 | Z 1.1 / 4 " X 11.5 | 1.5/8 " X 12 | O 920 | 26.5 | 15.1 | 56.5 | 50 |
1N O- 24 | Z 1.1 / 2 " X 11.5 | 1.7 / 8 " X 12 | O 924 | 27.5 | 15.1 | 57.5 | 55 |
