Categori cynnyrch: Addaswyr gosod hydrolig JIC ar gyfer cysylltiad tiwb â phŵer hylif
Safon Cynnyrch: ISO 8434-2, SAE J514.
Deunydd: dur carbon, dur gwrthstaen neu aloi copr.
Diwedd tiwb JIC i gysylltiad pen arall fel a ganlyn: BSP Sêl gaeth E, mathau G, H, ffitiadau cyfres ISO 6149, ffitiadau JIS B2351, ffitiadau ISO 11926 ac SAE J1926 ORB, ffitiadau DIN 3852 ac ISO 1179, ffitiadau ISO 9974 ac ati.

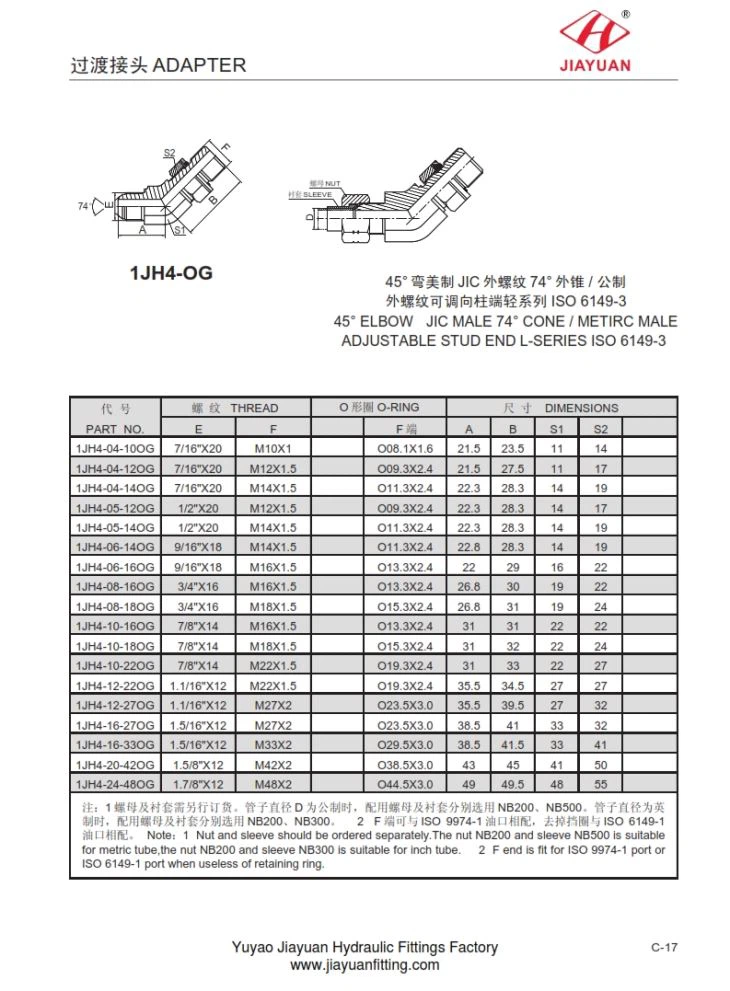

1JH4-OG 45 ° ELBOW JIC MALE 74 ° CONE / METIRC MALE ADDASOL STUD DIWEDD L-CYFRES ISO 6149-3 Siart dimensiwn fel a ganlyn:
PA RT N O. | T HR EA D. | O- RING | DIM E N S I O NS | ||||||
E. | F. | F. | A. | B. | S 1 | S 2 | |||
1 J H4 - 04 - 10 O G. | 7/16 " X 20 | M10 X 1 | O 08.1 X 1.6 | 21.5 | 23.5 | 11 | 14 | ||
1 J H4 - 04 - 12 O G. | 7/16 " X 20 | M12 X 1.5 | O 09.3 X 2.4 | 21.5 | 27.5 | 11 | 17 | ||
1 J H4 - 04 - 14 O G. | 7/16 " X 20 | M14 X 1.5 | O 11.3 X 2.4 | 22.3 | 28.3 | 14 | 19 | ||
1 J H4 - 05 - 12 O G. | 1/2 " X 20 | M12 X 1.5 | O 09.3 X 2.4 | 22.3 | 28.3 | 14 | 17 | ||
1 J H4 - 05 - 14 O G. | 1/2 " X 20 | M14 X 1.5 | O 11.3 X 2.4 | 22.3 | 28.3 | 14 | 19 | ||
1 J H4 - 06 - 14 O G. | 9/16 " X 18 | M14 X 1.5 | O 11.3 X 2.4 | 22.8 | 28.3 | 14 | 19 | ||
1 J H4 - 06 - 16 O G. | 9/16 " X 18 | M16 X 1.5 | O 13.3 X 2.4 | 22 | 29 | 16 | 22 | ||
1 J H4 - 08 - 16 O G. | 3/4 " X 16 | M16 X 1.5 | O 13.3 X 2.4 | 26.8 | 30 | 19 | 22 | ||
1 J H4 - 08 - 18 O G. | 3/4 " X 16 | M18 X 1.5 | O 15.3 X 2.4 | 26.8 | 31 | 19 | 24 | ||
1 J H4 - 10 - 16 O G. | 7/8 " X 14 | M16 X 1.5 | O 13.3 X 2.4 | 31 | 31 | 22 | 22 | ||
1 J H4 - 10 - 18 O G. | 7/8 " X 14 | M18 X 1.5 | O 15.3 X 2.4 | 31 | 32 | 22 | 24 | ||
1 J H4 - 10 - 22 O G. | 7/8 " X 14 | M22 X 1.5 | O 19.3 X 2.4 | 31 | 33 | 22 | 27 | ||
1 J H4 - 12 - 22 O G. | 1.1 / 16 " X 12 | M22 X 1.5 | O 19.3 X 2.4 | 35.5 | 34.5 | 27 | 27 | ||
1 J H4 - 12 - 27 O G. | 1.1 / 16 " X 12 | M27 X 2 | O 23.5 X 3.0 | 35.5 | 39.5 | 27 | 32 | ||
1 J H4 - 16 - 27 O G. | 1.5/16 " X 12 | M27 X 2 | O 23.5 X 3.0 | 38.5 | 41 | 33 | 32 | ||
1 J H4 - 16 - 33 O G. | 1.5/16 " X 12 | M33 X 2 | O 29.5 X 3.0 | 38.5 | 41.5 | 33 | 41 | ||
1 J H4 - 20 - 42 O G. | 1.5/8 " X 12 | M42 X 2 | O 38.5 X 3.0 | 43 | 45 | 41 | 50 | ||
1 J H4 - 24 - 48 O G. | 1.7 / 8 " X 12 | M48 X 2 | O 44.5 X 3.0 | 49 | 49.5 | 48 | 55 | ||
