Mathau o Gynnyrch: 1FT-SP o ffitiadau tiwb sêl wyneb cylch
Safonau Diwydiant: SAE J1453, ISO 8434-3, SAE J514, ISO 8434-2
Cysylltiad E ag arddull F:
DUW ORFS / DUW BSPT
Siâp: yn syth
Ffitiadau ORFS Sgôr pwysau gweithio: 3215 psi i 5800 psi, 216 bar i 400 bar.
Orfs wyneb gwastad o becyn maint cylch a dyluniad sêl wyneb cylch O y gallwn ei gynnig hefyd.
Gwahaniaeth rhwng o sêl wyneb cylch ac o sêl bos cylch
Deunydd Ffitiadau: Pres; Dur carbon; Dur Di-staen
Cais: Offer Amaethyddiaeth, Proses Modurol, Trosglwyddo Cemegol, Offer Adeiladu, Trosglwyddo Tanwydd, Hydrolig, Offer Gweithgynhyrchu, Morol, Trin Deunyddiau, Offer Symudol, Maes Olew, Pecynnu, Cludiant

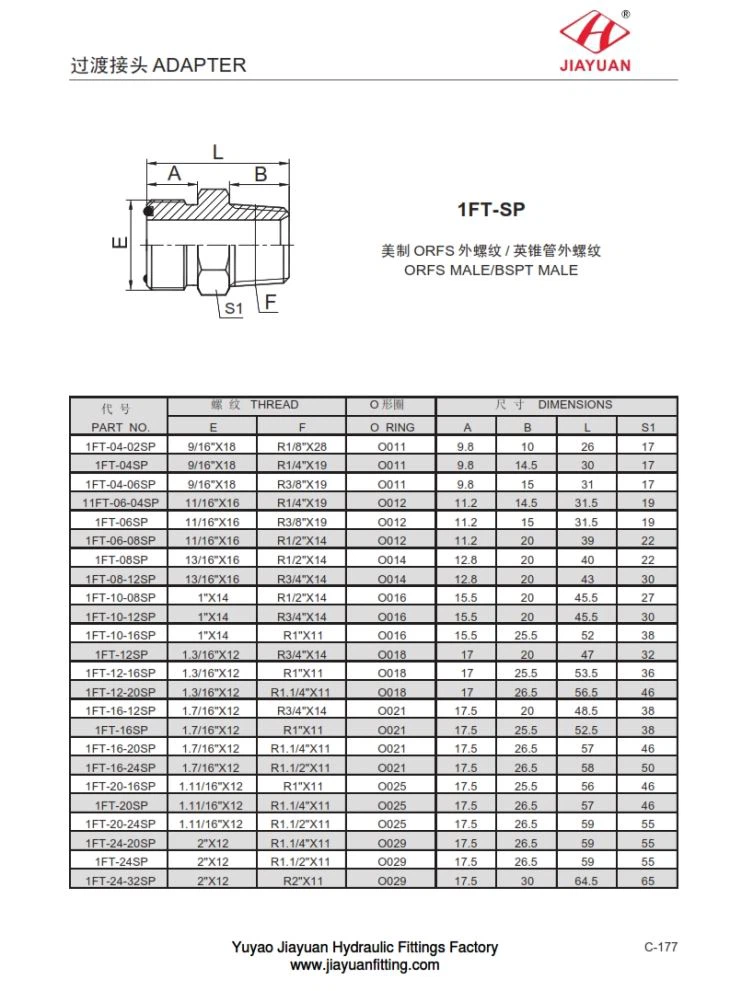

Siart tabl maint Dimensiwn 1FT-SP ORFS gwryw / bspt gwrywaidd fel a ganlyn:
PAR T. NA . | THREA D. | O. | DIMENSION S. | ||||
E. | F. | O RING | A. | B. | L. | S 1 | |
1FT-04-02S P. | 9/16 "X1 8 | R1 / 8 "X2 8 | O 01 1 | 9. 8 | 1 0 | 2 6 | 1 7 |
1FT-04S P. | 9/16 "X1 8 | R1 / 4 "X1 9 | O 01 1 | 9. 8 | 14. 5 | 3 0 | 1 7 |
1FT-04-06S P. | 9/16 "X1 8 | R3 / 8 "X1 9 | O 01 1 | 9. 8 | 1 5 | 3 1 | 1 7 |
11FT-06-04S P. | 11/16 "X1 6 | R1 / 4 "X1 9 | O 01 2 | 11. 2 | 14. 5 | 31. 5 | 1 9 |
1FT-06S P. | 11/16 "X1 6 | R3 / 8 "X1 9 | O 01 2 | 11. 2 | 1 5 | 31. 5 | 1 9 |
1FT-06-08S P. | 11/16 "X1 6 | R1 / 2 "X1 4 | O 01 2 | 11. 2 | 2 0 | 3 9 | 2 2 |
1FT-08S P. | 13/16 "X1 6 | R1 / 2 "X1 4 | O 01 4 | 12. 8 | 2 0 | 4 0 | 2 2 |
1FT-08-12S P. | 13/16 "X1 6 | R3 / 4 "X1 4 | O 01 4 | 12. 8 | 2 0 | 4 3 | 3 0 |
1FT-10-08S P. | 1 "X1 4 | R1 / 2 "X1 4 | O 01 6 | 15. 5 | 2 0 | 45. 5 | 2 7 |
1FT-10-12S P. | 1 "X1 4 | R3 / 4 "X1 4 | O 01 6 | 15. 5 | 2 0 | 45. 5 | 3 0 |
1FT-10-16S P. | 1 "X1 4 | R1 "X1 1 | O 01 6 | 15. 5 | 25. 5 | 5 2 | 3 8 |
1FT-12S P. | 1.3/16 "X1 2 | R3 / 4 "X1 4 | O 01 8 | 1 7 | 2 0 | 4 7 | 3 2 |
1FT-12-16S P. | 1.3/16 "X1 2 | R1 "X1 1 | O 01 8 | 1 7 | 25. 5 | 53. 5 | 3 6 |
1FT-12-20S P. | 1.3/16 "X1 2 | R1.1 / 4 "X1 1 | O 01 8 | 1 7 | 26. 5 | 56. 5 | 4 6 |
1FT-16-12S P. | 1.7 / 16 "X1 2 | R3 / 4 "X1 4 | O 02 1 | 17. 5 | 2 0 | 48. 5 | 3 8 |
1FT-16S P. | 1.7 / 16 "X1 2 | R1 "X1 1 | O 02 1 | 17. 5 | 25. 5 | 52. 5 | 3 8 |
1FT-16-20S P. | 1.7 / 16 "X1 2 | R1.1 / 4 "X1 1 | O 02 1 | 17. 5 | 26. 5 | 5 7 | 4 6 |
1FT-16-24S P. | 1.7 / 16 "X1 2 | R1.1 / 2 "X1 1 | O 02 1 | 17. 5 | 26. 5 | 5 8 | 5 0 |
1FT-20-16S P. | 1.11 / 16 "X1 2 | R1 "X1 1 | O 02 5 | 17. 5 | 25. 5 | 5 6 | 4 6 |
1FT-20S P. | 1.11 / 16 "X1 2 | R1.1 / 4 "X1 1 | O 02 5 | 17. 5 | 26. 5 | 5 7 | 4 6 |
1FT-20-24S P. | 1.11 / 16 "X1 2 | R1.1 / 2 "X1 1 | O 02 5 | 17. 5 | 26. 5 | 5 9 | 5 5 |
1FT-24-20S P. | 2 "X1 2 | R1.1 / 4 "X1 1 | O 02 9 | 17. 5 | 26. 5 | 5 9 | 5 5 |
1FT-24S P. | 2 "X1 2 | R1.1 / 2 "X1 1 | O 02 9 | 17. 5 | 26. 5 | 5 9 | 5 5 |
1FT-24-32S P. | 2 "X1 2 | R2 "X1 1 | O 02 9 | 17. 5 | 3 0 | 64. 5 | 6 5 |
