Mathau o Gynnyrch: 2FS o ffitiadau tiwb sêl wyneb cylch
Safonau Diwydiant: SAE J1453, ISO 8434-3, SAE J514, ISO 8434-2
Cysylltiad E ag arddull F: ORFS MALE / JIS GAS FEMALE
Siâp: Penelin, syth, Tee, Croes ac ati.
Ffitiadau ORFS Sgôr pwysau gweithio: 3215 psi i 5800 psi, 216 bar i 400 bar.
Orfs wyneb gwastad o becyn maint cylch a dyluniad sêl wyneb cylch O y gallwn ei gynnig hefyd.
Gwahaniaeth rhwng o sêl wyneb cylch ac o sêl bos cylch
Deunydd Ffitiadau: Pres; Dur carbon; Dur Di-staen
Cais: Offer Amaethyddiaeth, Proses Modurol, Trosglwyddo Cemegol, Offer Adeiladu, Trosglwyddo Tanwydd, Hydrolig, Offer Gweithgynhyrchu, Morol, Trin Deunyddiau, Offer Symudol, Maes Olew, Pecynnu, Cludiant

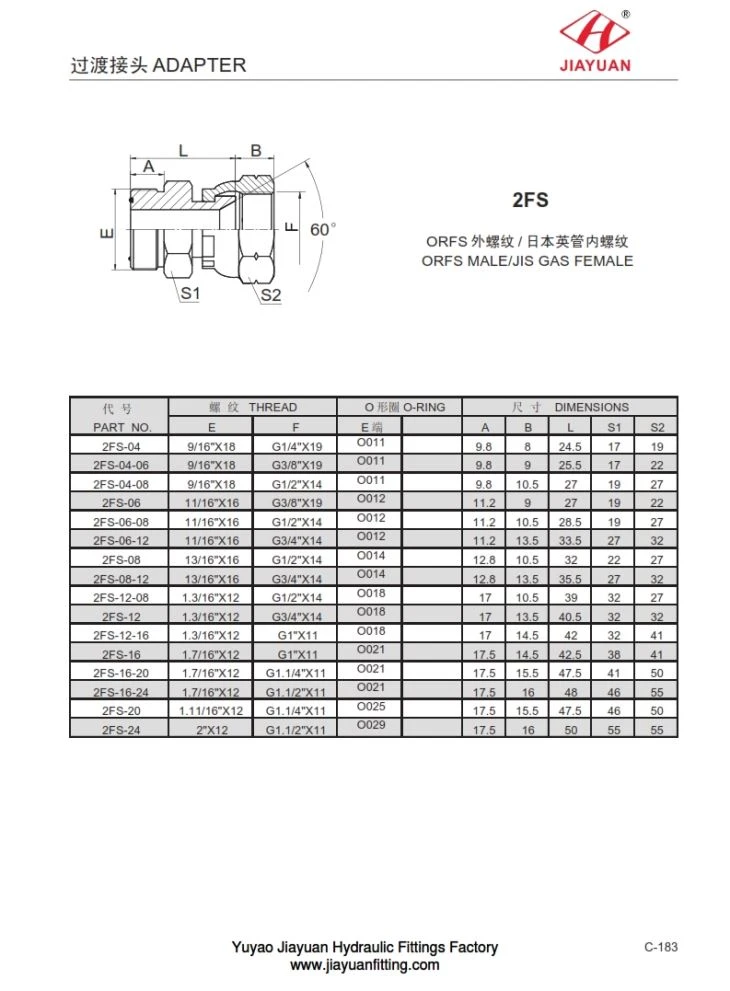

Siart tabl Maint Dimensiwn 2FS ORFS gwryw / nwy benywaidd fel a ganlyn
PAR T. NA . | THREA D. | O. O-RIN G. | DIMENSION S. | ||||||
E. | F. | E. | A. | B. | L. | S 1 | S 2 | ||
2FS-0 4 | 9/16 "X1 8 | G1 / 4 "X1 9 | O 01 1 | 9. 8 | 8 | 24. 5 | 1 7 | 1 9 | |
2FS-04-0 6 | 9/16 "X1 8 | G3 / 8 "X1 9 | O 01 1 | 9. 8 | 9 | 25. 5 | 1 7 | 2 2 | |
2FS-04-0 8 | 9/16 "X1 8 | G1 / 2 "X1 4 | O 01 1 | 9. 8 | 10. 5 | 2 7 | 1 9 | 2 7 | |
2FS-0 6 | 11/16 "X1 6 | G3 / 8 "X1 9 | O 01 2 | 11. 2 | 9 | 2 7 | 1 9 | 2 2 | |
2FS-06-0 8 | 11/16 "X1 6 | G1 / 2 "X1 4 | O 01 2 | 11. 2 | 10. 5 | 28. 5 | 1 9 | 2 7 | |
2FS-06-1 2 | 11/16 "X1 6 | G3 / 4 "X1 4 | O 01 2 | 11. 2 | 13. 5 | 33. 5 | 2 7 | 3 2 | |
2FS-0 8 | 13/16 "X1 6 | G1 / 2 "X1 4 | O 01 4 | 12. 8 | 10. 5 | 3 2 | 2 2 | 2 7 | |
2FS-08-1 2 | 13/16 "X1 6 | G3 / 4 "X1 4 | O 01 4 | 12. 8 | 13. 5 | 35. 5 | 2 7 | 3 2 | |
2FS-12-0 8 | 1.3/16 "X1 2 | G1 / 2 "X1 4 | O 01 8 | 1 7 | 10. 5 | 3 9 | 3 2 | 2 7 | |
2FS-1 2 | 1.3/16 "X1 2 | G3 / 4 "X1 4 | O 01 8 | 1 7 | 13. 5 | 40. 5 | 3 2 | 3 2 | |
2FS-12-1 6 | 1.3/16 "X1 2 | G1 "X1 1 | O 01 8 | 1 7 | 14. 5 | 4 2 | 3 2 | 4 1 | |
2FS-1 6 | 1.7 / 16 "X1 2 | G1 "X1 1 | O 02 1 | 17. 5 | 14. 5 | 42. 5 | 3 8 | 4 1 | |
2FS-16-2 0 | 1.7 / 16 "X1 2 | G1.1 / 4 "X1 1 | O 02 1 | 17. 5 | 15. 5 | 47. 5 | 4 1 | 5 0 | |
2FS-16-2 4 | 1.7 / 16 "X1 2 | G1.1 / 2 "X1 1 | O 02 1 | 17. 5 | 1 6 | 4 8 | 4 6 | 5 5 | |
2FS-2 0 | 1.11 / 16 "X1 2 | G1.1 / 4 "X1 1 | O 02 5 | 17. 5 | 15. 5 | 47. 5 | 4 6 | 5 0 | |
2FS-2 4 | 2 "X1 2 | G1.1 / 2 "X1 1 | O 02 9 | 17. 5 | 1 6 | 5 0 | 5 5 | 5 5 | |
