Mae dimensiynau a chatalog ffitiadau pibellau BSP yr un peth gan wahanol gyflenwyr.
Deunydd Mathau o ffitiadau pibellau fel dur gwrthstaen, pres a phlastig.
Cymhwyso ffitiadau pibell edau BSPP y DU ac UDA mewn ffitiadau pibellau offeryniaeth a ffitiadau pibellau diwydiannol.
Addaswyr ftting pibell BSP i weldio soced, gwryw NPT, SAE ORB, gwryw BSPT, gwryw ORFS, cysylltydd tiwb DIN 2353, o-ring metrig ac ati.
Siâp addasydd pibell BSPP fel syth, Penelin, Tee, Cross, Reducer.
Gallwn hefyd gyflenwi ffitiadau bsp hyd at 2 fodfedd.

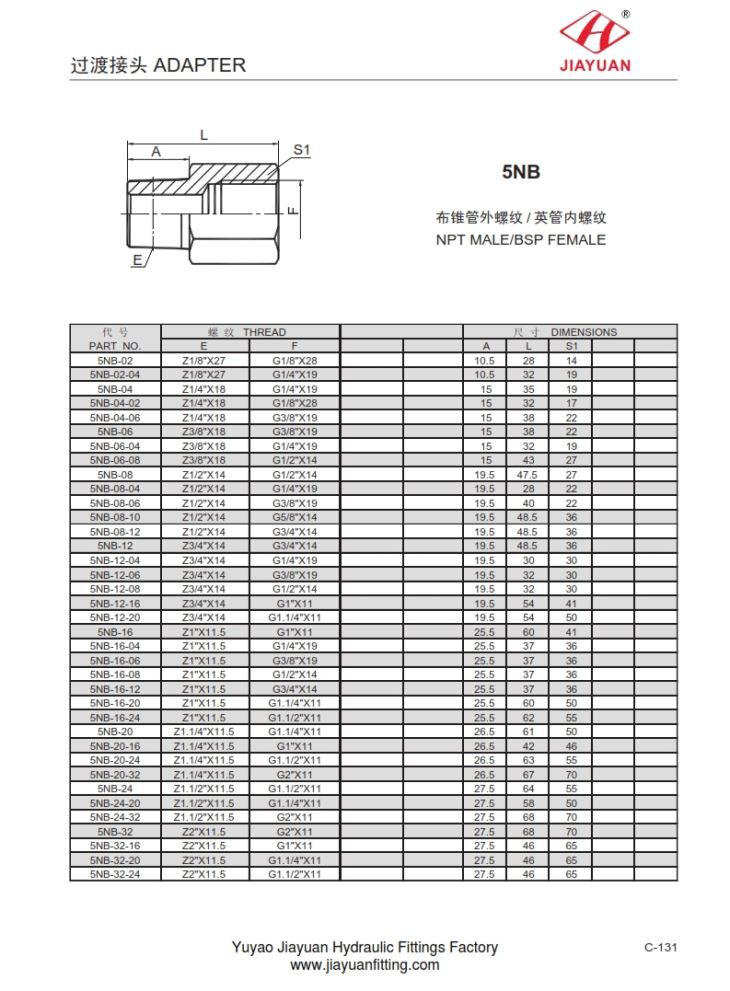

Siart maint cysylltydd pibell 5NB NPT MALE / BSP FEMALE fel a ganlyn:
RHAN RHIF. | TRI | DIMENSIYNAU | |||||
E. | F. | A. | L. | S1 | |||
5NB-02 | Z1 / 8 "X27 | G1 / 8 "X28 | 10.5 | 28 | 14 | ||
5NB-02-04 | Z1 / 8 "X27 | G1 / 4 "X19 | 10.5 | 32 | 19 | ||
5NB-04 | Z1 / 4 "X18 | G1 / 4 "X19 | 15 | 35 | 19 | ||
5NB-04-02 | Z1 / 4 "X18 | G1 / 8 "X28 | 15 | 32 | 17 | ||
5NB-04-06 | Z1 / 4 "X18 | G3 / 8 "X19 | 15 | 38 | 22 | ||
5NB-06 | Z3 / 8 "X18 | G3 / 8 "X19 | 15 | 38 | 22 | ||
5NB-06-04 | Z3 / 8 "X18 | G1 / 4 "X19 | 15 | 32 | 19 | ||
5NB-06-08 | Z3 / 8 "X18 | G1 / 2 "X14 | 15 | 43 | 27 | ||
5NB-08 | Z1 / 2 "X14 | G1 / 2 "X14 | 19.5 | 47.5 | 27 | ||
5NB-08-04 | Z1 / 2 "X14 | G1 / 4 "X19 | 19.5 | 28 | 22 | ||
5NB-08-06 | Z1 / 2 "X14 | G3 / 8 "X19 | 19.5 | 40 | 22 | ||
5NB-08-10 | Z1 / 2 "X14 | G5 / 8 "X14 | 19.5 | 48.5 | 36 | ||
5NB-08-12 | Z1 / 2 "X14 | G3 / 4 "X14 | 19.5 | 48.5 | 36 | ||
5NB-12 | Z3 / 4 "X14 | G3 / 4 "X14 | 19.5 | 48.5 | 36 | ||
5NB-12-04 | Z3 / 4 "X14 | G1 / 4 "X19 | 19.5 | 30 | 30 | ||
5NB-12-06 | Z3 / 4 "X14 | G3 / 8 "X19 | 19.5 | 32 | 30 | ||
5NB-12-08 | Z3 / 4 "X14 | G1 / 2 "X14 | 19.5 | 32 | 30 | ||
5NB-12-16 | Z3 / 4 "X14 | G1 "X11 | 19.5 | 54 | 41 | ||
5NB-12-20 | Z3 / 4 "X14 | G1.1 / 4 "X11 | 19.5 | 54 | 50 | ||
5NB-16 | Z1 "X11.5 | G1 "X11 | 25.5 | 60 | 41 | ||
5NB-16-04 | Z1 "X11.5 | G1 / 4 "X19 | 25.5 | 37 | 36 | ||
5NB-16-06 | Z1 "X11.5 | G3 / 8 "X19 | 25.5 | 37 | 36 | ||
5NB-16-08 | Z1 "X11.5 | G1 / 2 "X14 | 25.5 | 37 | 36 | ||
5NB-16-12 | Z1 "X11.5 | G3 / 4 "X14 | 25.5 | 37 | 36 | ||
5NB-16-20 | Z1 "X11.5 | G1.1 / 4 "X11 | 25.5 | 60 | 50 | ||
5NB-16-24 | Z1 "X11.5 | G1.1 / 2 "X11 | 25.5 | 62 | 55 | ||
5NB-20 | Z1.1 / 4 "X11.5 | G1.1 / 4 "X11 | 26.5 | 61 | 50 | ||
5NB-20-16 | Z1.1 / 4 "X11.5 | G1 "X11 | 26.5 | 42 | 46 | ||
5NB-20-24 | Z1.1 / 4 "X11.5 | G1.1 / 2 "X11 | 26.5 | 63 | 55 | ||
5NB-20-32 | Z1.1 / 4 "X11.5 | G2 "X11 | 26.5 | 67 | 70 | ||
5NB-24 | Z1.1 / 2 "X11.5 | G1.1 / 2 "X11 | 27.5 | 64 | 55 | ||
5NB-24-20 | Z1.1 / 2 "X11.5 | G1.1 / 4 "X11 | 27.5 | 58 | 50 | ||
5NB-24-32 | Z1.1 / 2 "X11.5 | G2 "X11 | 27.5 | 68 | 70 | ||
5NB-32 | Z2 "X11.5 | G2 "X11 | 27.5 | 68 | 70 | ||
5NB-32-16 | Z2 "X11.5 | G1 "X11 | 27.5 | 46 | 65 | ||
5NB-32-20 | Z2 "X11.5 | G1.1 / 4 "X11 | 27.5 | 46 | 65 | ||
5NB-32-24 | Z2 "X11.5 | G1.1 / 2 "X11 | 27.5 | 46 | 65 | ||
