Weithiau fe'i gelwir hefyd yn National Pipe Thread, NPTF (F for Fuel), American Standard Taper, neu'n syml "pibell".

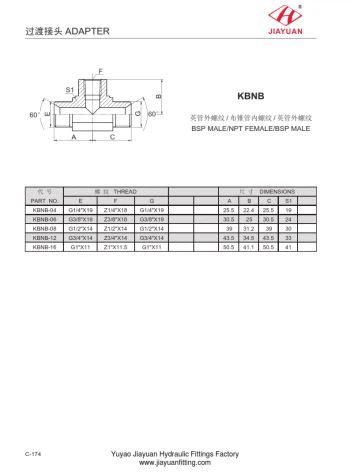

Mathau o addaswyr NPT: addasydd gwrywaidd neu fenywaidd
Safon Cynnyrch: ISO 11926-3, SAE J514 a BS 5200
Maint siart maint addaswyr NPT yw 1/8 NPT, 1/4 NPT, 3/8 NP, 1/2 NPT, 3/4 NPT, 1 "NPT ac ati.
Deunydd: dur carbon, dur gwrthstaen neu aloi copr
Siâp addaswyr ffitio NPT: syth, Penelin, Tee, Cross, Reducer ac ati.
Addaswyr ffitio NPT i ffitio swivel, addasydd metrig, addasydd bspp, addasydd sae ac ati.
2OU4-OG 45 ° ELBOW SAE O-RING BOSS L-SERIES ISO11926-3 / NPSM FEMALE 60 ° Dimensiynau addasydd CONE fel a ganlyn:
PA RT N O. | T HR EA D. | O- RING | DIM E N S I O NS | ||||||
E. | F. | E. | A. | B. | S 1 | S 2 | S 3 | ||
2 O U4 - 04 - 02 O G. | 7/16 " X 20 | 1/8 " X 27 | O 904 | 24 | 3.5 | 11 | 15 | 17 | |
2 O U4 - 04 O G. | 7/16 " X 20 | 1/4 " X 18 | O 904 | 24 | 4.6 | 11 | 19 | 19 | |
2 O U4 - 04 - 06 O G. | 7/16 " X 20 | 3/8 " X 18 | O 904 | 23.5 | 6 | 14 | 22 | 22 | |
2 O U4 - 06 - 04 O G. | 9/16 " X 18 | 1/4 " X 18 | O 906 | 27.5 | 4.6 | 14 | 19 | 19 | |
2 O U4 - 06 O G. | 9/16 " X 18 | 3/8 " X 18 | O 906 | 27.5 | 6 | 14 | 22 | 22 | |
2 O U4 - 06 - 08 O G. | 9/16 " X 18 | 1/2 " X 14 | O 906 | 30 | 7.5 | 19 | 27 | 19 | |
2 O U4 - 08 - 06 O G. | 3/4 " X 16 | 3/8 " X 18 | O 908 | 31.5 | 6 | 19 | 22 | 22 | |
2 O U4 - 08 O G. | 3/4 " X 16 | 1/2 " X 14 | O 908 | 31.5 | 7.5 | 19 | 27 | 27 | |
2 O U4 - 08 - 12 O G. | 3/4 " X 16 | 3/4 " X 14 | O 908 | 33.5 | 8.9 | 24 | 32 | 32 | |
2 O U4 - 10 - 08 O G. | 7/8 " X 14 | 1/2 " X 14 | O 910 | 38.5 | 7.5 | 22 | 27 | 27 | |
2 O U4 - 10 - 12 O G. | 7/8 " X 14 | 3/4 " X 14 | O 910 | 39 | 8.9 | 24 | 32 | 27 | |
2 O U4 - 12 - 08 O G. | 1.1 / 16 " X 12 | 1/2 " X 14 | O 912 | 43.5 | 7.5 | 27 | 27 | 32 | |
2 O U4 - 12 O G. | 1.1 / 16 " X 12 | 3/4 " X 14 | O 912 | 43.5 | 8.9 | 27 | 32 | 32 | |
2 O U4 - 12 - 16 O G. | 1.1 / 16 " X 12 | 1 " X 11.5 | O 912 | 44.5 | 10.5 | 30 | 41 | 32 | |
2 O U4 - 16 - 12 O G. | 1.5/16 " X 12 | 3/4 " X 14 | O 916 | 45.5 | 8.9 | 33 | 32 | 41 | |
2 O U4 - 16 O G. | 1.5/16 " X 12 | 1 " X 11.5 | O 916 | 45.5 | 10.5 | 33 | 41 | 41 | |
2 O U4 - 16 - 20 O G. | 1.5/16 " X 12 | 1.1 / 4 " X 11.5 | O 916 | 48 | 11.2 | 41 | 50 | 41 | |
2 O U4 - 20 - 16 O G. | 1.5/8 " X 12 | 1 " X 11.5 | O 920 | 48 | 10.5 | 41 | 41 | 50 | |
2 O U4 - 20 O G. | 1.5/8 " X 12 | 1.1 / 4 " X 11.5 | O 920 | 48 | 11.2 | 41 | 50 | 50 | |
