Mathau o Gynnyrch: Plug Flange SAE 4FL / 4FS
Safonau'r Diwydiant: SAE J518, ISO 6162
Cysylltiad E ag arddull F: flange SAE PLUG
Siâp: Syth
Sgôr pwysau gweithio: cod 61 SAE yw 2.5 i 31.5 Mpa; Cod SAE 62 yw 40 Mpa.
Deunydd Ffitiadau: Pres; Dur carbon; Dur Di-staen
Cais: Offer Amaethyddiaeth, Proses Modurol, Trosglwyddo Cemegol, Offer Adeiladu, Trosglwyddo Tanwydd, Hydrolig, Offer Gweithgynhyrchu, Morol, Trin Deunyddiau, Offer Symudol, Maes Olew, Pecynnu, Cludiant

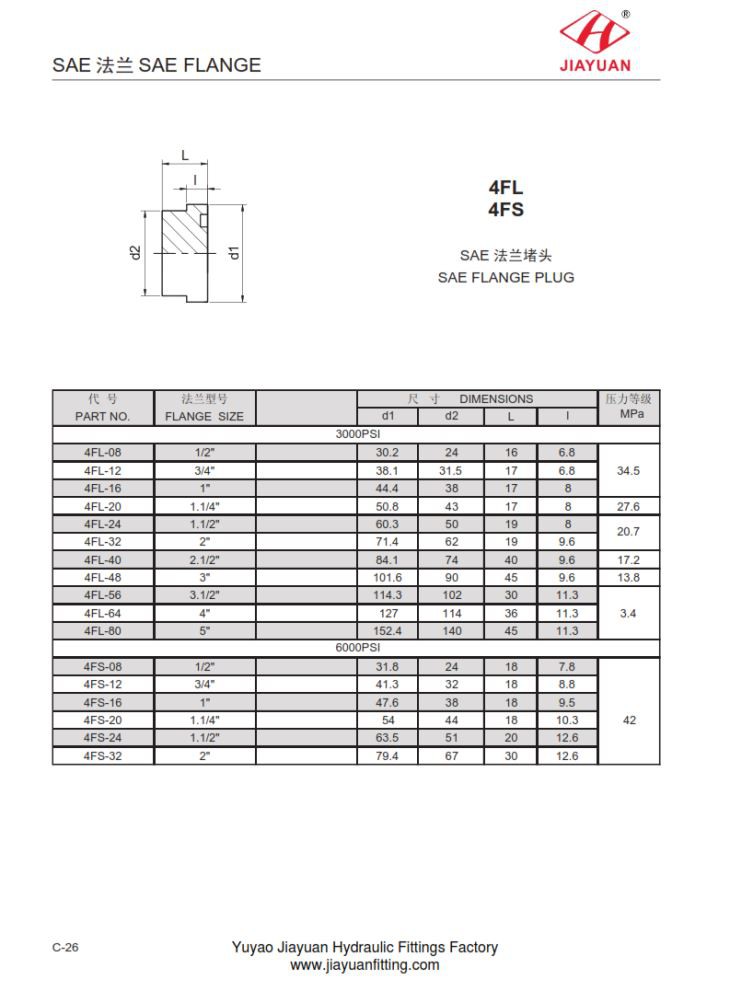

Fflans SAE 4FL / 4FS siart tabl Maint Dimensiwn PLUG fel a ganlyn
RHAN RHIF. | MAINT Y FFLINT | DIMENSIYNAU | MPa | ||||
d1 | d2 | L. | l | ||||
3000PSI | |||||||
4FL-08 | 1/2 " | 30.2 | 24 | 16 | 6.8 | 34.5 | |
4FL-12 | 3/4 " | 38.1 | 31.5 | 17 | 6.8 | ||
4FL-16 | 1 " | 44.4 | 38 | 17 | 8 | ||
4FL-20 | 1.1 / 4 " | 50.8 | 43 | 17 | 8 | 27.6 | |
4FL-24 | 1.1 / 2 " | 60.3 | 50 | 19 | 8 | 20.7 | |
4FL-32 | 2 " | 71.4 | 62 | 19 | 9.6 | ||
4FL-40 | 2.1 / 2 " | 84.1 | 74 | 40 | 9.6 | 17.2 | |
4FL-48 | 3 " | 101.6 | 90 | 45 | 9.6 | 13.8 | |
4FL-56 | 3.1 / 2 " | 114.3 | 102 | 30 | 11.3 | 3.4 | |
4FL-64 | 4 " | 127 | 114 | 36 | 11.3 | ||
4FL-80 | 5 " | 152.4 | 140 | 45 | 11.3 | ||
6000PSI | |||||||
4FS-08 | 1/2 " | 31.8 | 24 | 18 | 7.8 | 42 | |
4FS-12 | 3/4 " | 41.3 | 32 | 18 | 8.8 | ||
4FS-16 | 1 " | 47.6 | 38 | 18 | 9.5 | ||
4FS-20 | 1.1 / 4 " | 54 | 44 | 18 | 10.3 | ||
4FS-24 | 1.1 / 2 " | 63.5 | 51 | 20 | 12.6 | ||
4FS-32 | 2 " | 79.4 | 67 | 30 | 12.6 |
