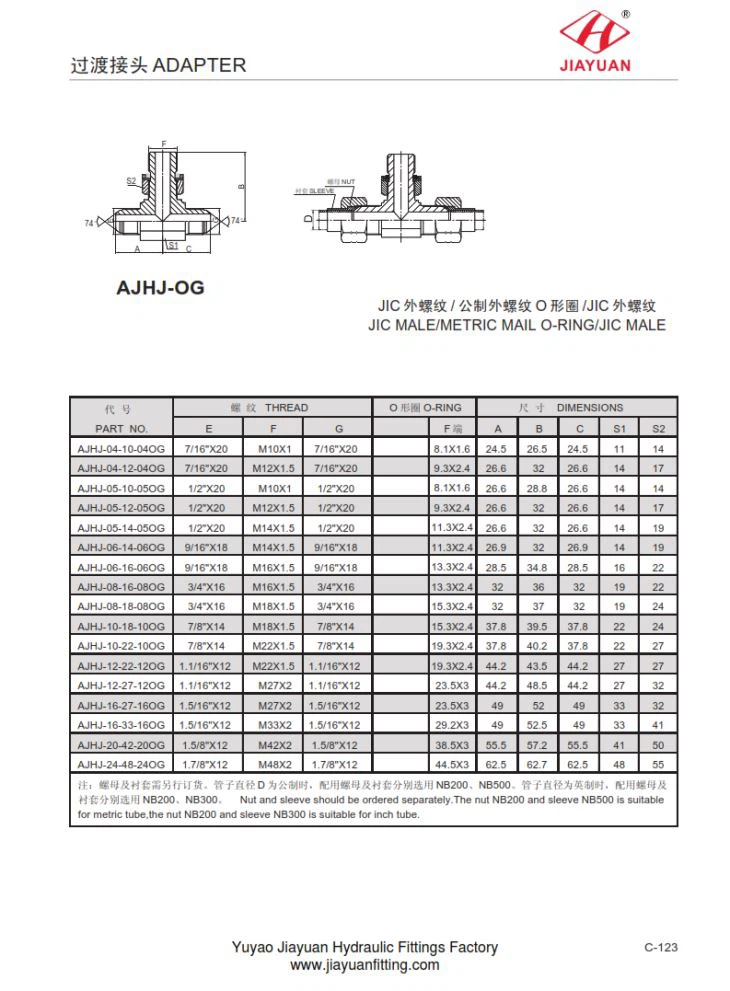

AJHJ-OG JIC MALE / METRIC MAIL O-RING / JIC MALE siart maint fel a ganlyn:
PAR T. NA . | T H R E A D. | O-RIN G. | DIMENSION S. | ||||||
E. | F. | G. | F. | A. | B. | C. | S 1 | S 2 | |
AJHJ-04-10-04O G. | 7/16 "X2 0 | M10X 1 | 7/16 "X2 0 | 8 . 1 X 1 .6 | 24. 5 | 26. 5 | 24. 5 | 1 1 | 1 4 |
AJHJ-04-12-04O G. | 7/16 "X2 0 | M12X1. 5 | 7/16 "X2 0 | 9 . 3 X 2 .4 | 26. 6 | 3 2 | 26. 6 | 1 4 | 1 7 |
AJHJ-05-10-05O G. | 1/2 "X2 0 | M10X 1 | 1/2 "X2 0 | 8 . 1 X 1 .6 | 26. 6 | 28. 8 | 26. 6 | 1 4 | 1 4 |
AJHJ-05-12-05O G. | 1/2 "X2 0 | M12X1. 5 | 1/2 "X2 0 | 9 . 3 X 2 .4 | 26. 6 | 3 2 | 26. 6 | 1 4 | 1 7 |
AJHJ-05-14-05O G. | 1/2 "X2 0 | M14X1. 5 | 1/2 "X2 0 | 11 . 3 X 2 .4 | 26. 6 | 3 2 | 26. 6 | 1 4 | 1 9 |
AJHJ-06-14-06O G. | 9/16 "X1 8 | M14X1. 5 | 9/16 "X1 8 | 11 . 3 X 2 .4 | 26. 9 | 3 2 | 26. 9 | 1 4 | 1 9 |
AJHJ-06-16-06O G. | 9/16 "X1 8 | M16X1. 5 | 9/16 "X1 8 | 13 . 3 X 2 .4 | 28. 5 | 34. 8 | 28. 5 | 1 6 | 2 2 |
AJHJ-08-16-08O G. | 3/4 "X1 6 | M16X1. 5 | 3/4 "X1 6 | 13 . 3 X 2 .4 | 3 2 | 3 6 | 3 2 | 1 9 | 2 2 |
AJHJ-08-18-08O G. | 3/4 "X1 6 | M18X1. 5 | 3/4 "X1 6 | 15 . 3 X 2 .4 | 3 2 | 3 7 | 3 2 | 1 9 | 2 4 |
AJHJ-10-18-10O G. | 7/8 "X1 4 | M18X1. 5 | 7/8 "X1 4 | 15 . 3 X 2 .4 | 37. 8 | 39. 5 | 37. 8 | 2 2 | 2 4 |
AJHJ-10-22-10O G. | 7/8 "X1 4 | M22X1. 5 | 7/8 "X1 4 | 19 . 3 X 2 .4 | 37. 8 | 40. 2 | 37. 8 | 2 2 | 2 7 |
AJHJ-12-22-12O G. | 1.1 / 16 "X1 2 | M22X1. 5 | 1.1 / 16 "X1 2 | 19 . 3 X 2 .4 | 44. 2 | 43. 5 | 44. 2 | 2 7 | 2 7 |
AJHJ-12-27-12O G. | 1.1 / 16 "X1 2 | M27X 2 | 1.1 / 16 "X1 2 | 23 . 5 X3 | 44. 2 | 48. 5 | 44. 2 | 2 7 | 3 2 |
AJHJ-16-27-16O G. | 1.5/16 "X1 2 | M27X 2 | 1.5/16 "X1 2 | 23 . 5 X3 | 4 9 | 5 2 | 4 9 | 3 3 | 3 2 |
AJHJ-16-33-16O G. | 1.5/16 "X1 2 | M33X 2 | 1.5/16 "X1 2 | 29 . 2 X3 | 4 9 | 52. 5 | 4 9 | 3 3 | 4 1 |
AJHJ-20-42-20O G. | 1.5/8 "X1 2 | M42X 2 | 1.5/8 "X1 2 | 38 . 5 X3 | 55. 5 | 57. 2 | 55. 5 | 4 1 | 5 0 |
AJHJ-24-48-24O G. | 1.7 / 8 "X1 2 | M48X 2 | 1.7 / 8 "X1 2 | 44 . 5 X3 | 62. 5 | 62. 7 | 62. 5 | 4 8 | 5 5 |
D. NB20 0 NB50 0 NB20 0 NB30 0 Nu t a ch sleev e shoul d b e ordere d ar wahân.Th e nu t NB20 0 a ch sleev e NB50 0 i s suitabl e fo r metri c tiwb, th e nu t NB20 0 a ch sleev e NB30 0 i s suitabl e fo r gan gynnwys h tiwb . | |||||||||
