Mathau o Gynnyrch: 1FO4-OG o ffitiadau tiwb sêl wyneb cylch
Safonau Diwydiant: SAE J1453, ISO 8434-3, SAE J514, ISO 8434-2, ISO 11926-2
Cysylltiad E ag arddull F:
45 ° ELBOW ORFS MALE O-RING / SAE O-RING BOSS S-SERIES
Siâp: Penelin, syth, Tee, Croes ac ati.
Ffitiadau ORFS Sgôr pwysau gweithio: 3215 psi i 5800 psi, 216 bar i 400 bar.
Orfs wyneb gwastad o becyn maint cylch a dyluniad sêl wyneb cylch O y gallwn ei gynnig hefyd.
Gwahaniaeth rhwng o sêl wyneb cylch ac o sêl bos cylch
Deunydd Ffitiadau: Pres; Dur carbon; Dur Di-staen
Cais: Offer Amaethyddiaeth, Proses Modurol, Trosglwyddo Cemegol, Offer Adeiladu, Trosglwyddo Tanwydd, Hydrolig, Offer Gweithgynhyrchu, Morol, Trin Deunyddiau, Offer Symudol, Maes Olew, Pecynnu, Cludiant

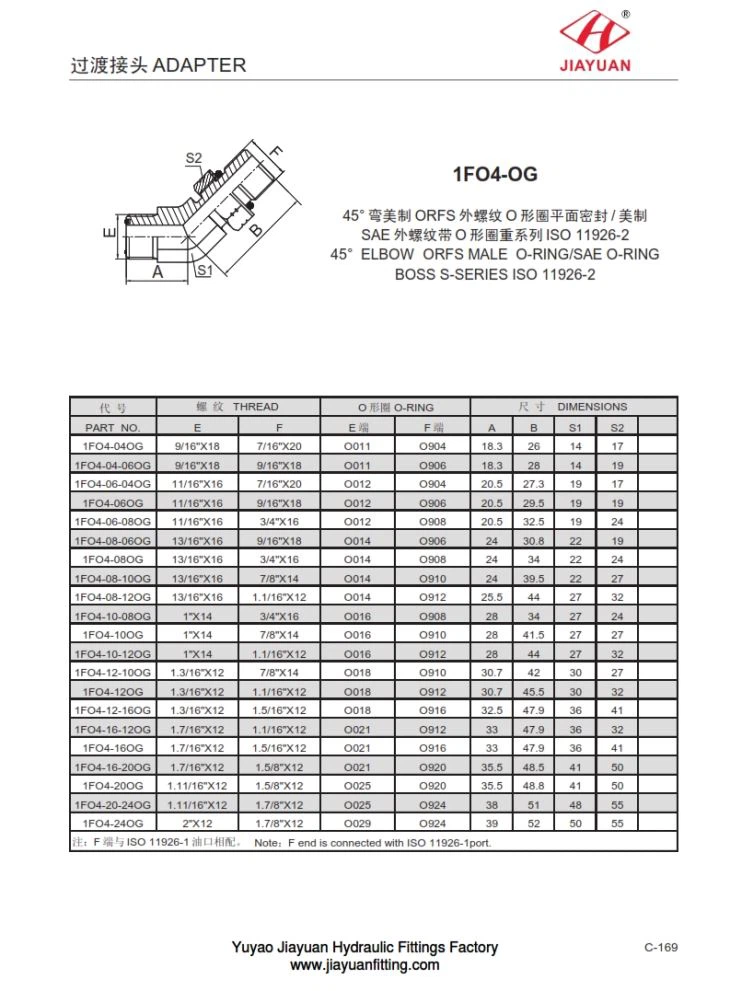

1FO4-OG 45 ° penelin ORFS gwryw o-ring / sae o-ring bos s-gyfres Siart tabl Maint Dimensiwn fel a ganlyn:
T HR EA D. | O. O- RING | DIM E N S I O NS | |||||||
PA RT N O. | E. | F. | E. | F. | A. | B. | S 1 | S 2 | |
1 FO 4 - 04 O G. | 9/16 " X 18 | 7/16 " X 20 | O 011 | O 904 | 18.3 | 26 | 14 | 17 | |
1 FO 4 - 04 - 06 O G. | 9/16 " X 18 | 9/16 " X 18 | O 011 | O 906 | 18.3 | 28 | 14 | 19 | |
1 FO 4 - 06 - 04 O G. | 11/16 " X 16 | 7/16 " X 20 | O 012 | O 904 | 20.5 | 27.3 | 19 | 17 | |
1 FO 4 - 06 O G. | 11/16 " X 16 | 9/16 " X 18 | O 012 | O 906 | 20.5 | 29.5 | 19 | 19 | |
1 FO 4 - 06 - 08 O G. | 11/16 " X 16 | 3/4 " X 16 | O 012 | O 908 | 20.5 | 32.5 | 19 | 24 | |
1 FO 4 - 08 - 06 O G. | 13/16 " X 16 | 9/16 " X 18 | O 014 | O 906 | 24 | 30.8 | 22 | 19 | |
1 FO 4 - 08 O G. | 13/16 " X 16 | 3/4 " X 16 | O 014 | O 908 | 24 | 34 | 22 | 24 | |
1 FO 4 - 08 - 10 O G. | 13/16 " X 16 | 7/8 " X 14 | O 014 | O 910 | 24 | 39.5 | 22 | 27 | |
1 FO 4 - 08 - 12 O G. | 13/16 " X 16 | 1.1 / 16 " X 12 | O 014 | O 912 | 25.5 | 44 | 27 | 32 | |
1 FO 4 - 10 - 08 O G. | 1 " X 14 | 3/4 " X 16 | O 016 | O 908 | 28 | 34 | 27 | 24 | |
1 FO 4 - 10 O G. | 1 " X 14 | 7/8 " X 14 | O 016 | O 910 | 28 | 41.5 | 27 | 27 | |
1 FO 4 - 10 - 12 O G. | 1 " X 14 | 1.1 / 16 " X 12 | O 016 | O 912 | 28 | 44 | 27 | 32 | |
1 FO 4 - 12 - 10 O G. | 1.3/16 " X 12 | 7/8 " X 14 | O 018 | O 910 | 30.7 | 42 | 30 | 27 | |
1 FO 4 - 12 O G. | 1.3/16 " X 12 | 1.1 / 16 " X 12 | O 018 | O 912 | 30.7 | 45.5 | 30 | 32 | |
1 FO 4 - 12 - 16 O G. | 1.3/16 " X 12 | 1.5/16 " X 12 | O 018 | O 916 | 32.5 | 47.9 | 36 | 41 | |
1 FO 4 - 16 - 12 O G. | 1.7 / 16 " X 12 | 1.1 / 16 " X 12 | O 021 | O 912 | 33 | 47.9 | 36 | 32 | |
1 FO 4 - 16 O G. | 1.7 / 16 " X 12 | 1.5/16 " X 12 | O 021 | O 916 | 33 | 47.9 | 36 | 41 | |
1 FO 4 - 16 - 20 O G. | 1.7 / 16 " X 12 | 1.5/8 " X 12 | O 021 | O 920 | 35.5 | 48.5 | 41 | 50 | |
1 FO 4 - 20 O G. | 1.11 / 16 " X 12 | 1.5/8 " X 12 | O 025 | O 920 | 35.5 | 48.8 | 41 | 50 | |
1 FO 4 - 20 - 24 O G. | 1.11 / 16 " X 12 | 1.7 / 8 " X 12 | O 025 | O 924 | 38 | 51 | 48 | 55 | |
1 FO 4 - 24 O G. | 2 " X 12 | 1.7 / 8 " X 12 | O 029 | O 924 | 39 | 52 | 50 | 55 | |
F. I S O 11926 - 1 Nodyn F end i s c onne c ted w i th I S O 11926 - 1po r t. | |||||||||
