Mathau o Gynnyrch: 2O F o ffitiadau tiwb sêl wyneb cylch
Safonau Diwydiant: SAE J1453, ISO 8434-3, SAE J514, ISO 8434-2
Cysylltiad E ag arddull F: SAEO-RING BOSS S-SERIES ISO 11926-2 / ORFS FEMALE
Siâp: Penelin, syth, Tee, Croes ac ati.
Ffitiadau ORFS Sgôr pwysau gweithio: 3215 psi i 5800 psi, 216 bar i 400 bar.
Orfs wyneb gwastad o becyn maint cylch a dyluniad sêl wyneb cylch O y gallwn ei gynnig hefyd.
Gwahaniaeth rhwng o sêl wyneb cylch ac o sêl bos cylch
Deunydd Ffitiadau: Pres; Dur carbon; Dur Di-staen
Cais: Offer Amaethyddiaeth, Proses Modurol, Trosglwyddo Cemegol, Offer Adeiladu, Trosglwyddo Tanwydd, Hydrolig, Offer Gweithgynhyrchu, Morol, Trin Deunyddiau, Offer Symudol, Maes Olew, Pecynnu, Cludiant

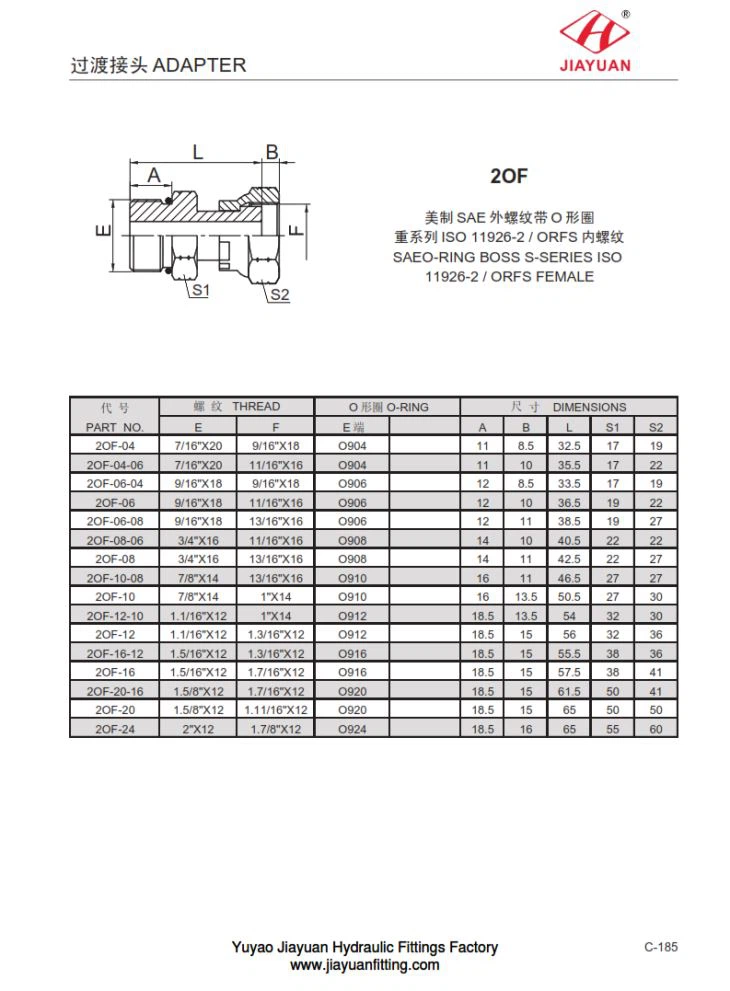

2O F SAEO-RING BOSS S-SERIES ISO 11926-2 / ORFS FEMALE Siart tabl maint Dimensiwn fel a ganlyn:
PA RT N O. | T HR EA D. | O. O- RING | DIM E N S I O NS | ||||||
E. | F. | E. | A. | B. | L. | S 1 | S 2 | ||
2 OF- 04 | 7/16 " X 20 | 9/16 " X 18 | O 904 | 11 | 8.5 | 32.5 | 17 | 19 | |
2 OF- 04 - 06 | 7/16 " X 20 | 11/16 " X 16 | O 904 | 11 | 10 | 35.5 | 17 | 22 | |
2 OF- 06 - 04 | 9/16 " X 18 | 9/16 " X 18 | O 906 | 12 | 8.5 | 33.5 | 17 | 19 | |
2 OF- 06 | 9/16 " X 18 | 11/16 " X 16 | O 906 | 12 | 10 | 36.5 | 19 | 22 | |
2 OF- 06 - 08 | 9/16 " X 18 | 13/16 " X 16 | O 906 | 12 | 11 | 38.5 | 19 | 27 | |
2 OF- 08 - 06 | 3/4 " X 16 | 11/16 " X 16 | O 908 | 14 | 10 | 40.5 | 22 | 22 | |
2 OF- 08 | 3/4 " X 16 | 13/16 " X 16 | O 908 | 14 | 11 | 42.5 | 22 | 27 | |
2 OF- 10 - 08 | 7/8 " X 14 | 13/16 " X 16 | O 910 | 16 | 11 | 46.5 | 27 | 27 | |
2 OF- 10 | 7/8 " X 14 | 1 " X 14 | O 910 | 16 | 13.5 | 50.5 | 27 | 30 | |
2 OF- 12 - 10 | 1.1 / 16 " X 12 | 1 " X 14 | O 912 | 18.5 | 13.5 | 54 | 32 | 30 | |
2 OF- 12 | 1.1 / 16 " X 12 | 1.3/16 " X 12 | O 912 | 18.5 | 15 | 56 | 32 | 36 | |
2 OF- 16 - 12 | 1.5/16 " X 12 | 1.3/16 " X 12 | O 916 | 18.5 | 15 | 55.5 | 38 | 36 | |
2 OF- 16 | 1.5/16 " X 12 | 1.7 / 16 " X 12 | O 916 | 18.5 | 15 | 57.5 | 38 | 41 | |
2 OF- 20 - 16 | 1.5/8 " X 12 | 1.7 / 16 " X 12 | O 920 | 18.5 | 15 | 61.5 | 50 | 41 | |
2 OF- 20 | 1.5/8 " X 12 | 1.11 / 16 " X 12 | O 920 | 18.5 | 15 | 65 | 50 | 50 | |
2 OF- 24 | 2 " X 12 | 1.7 / 8 " X 12 | O 924 | 18.5 | 16 | 65 | 55 | 60 | |
